R241M

Introduction

Specification

Documents

Graphic card

Software

Related Product

R241M

2MP/Color/Clinical Review

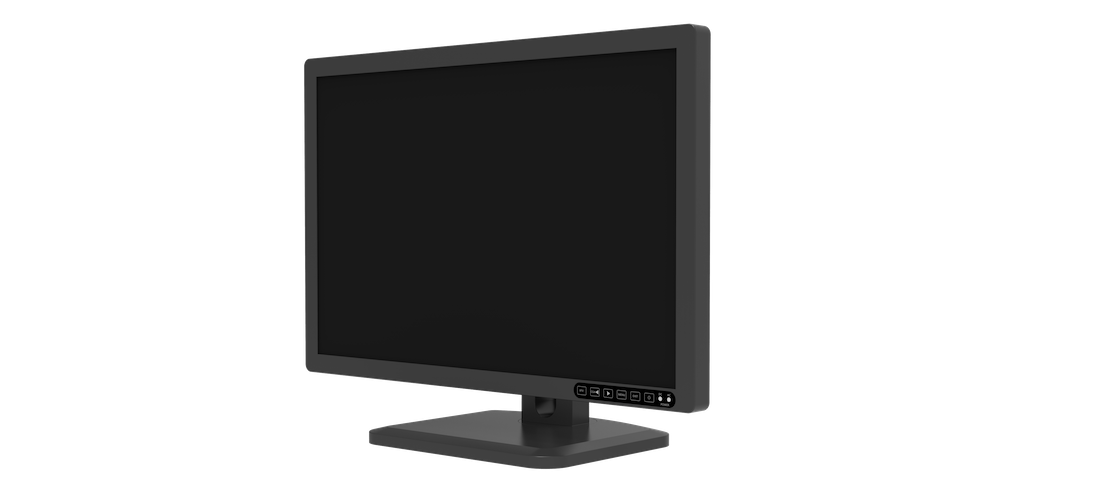

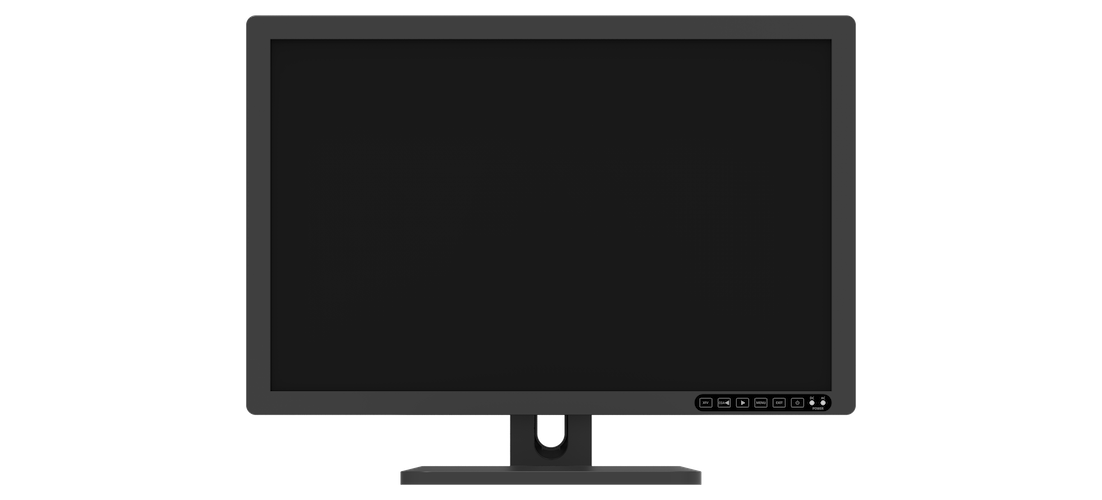

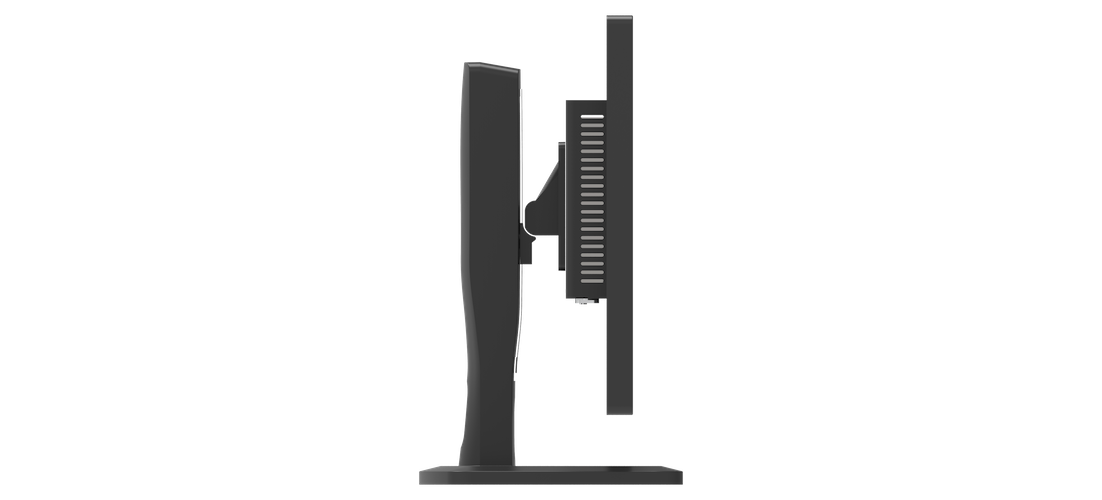

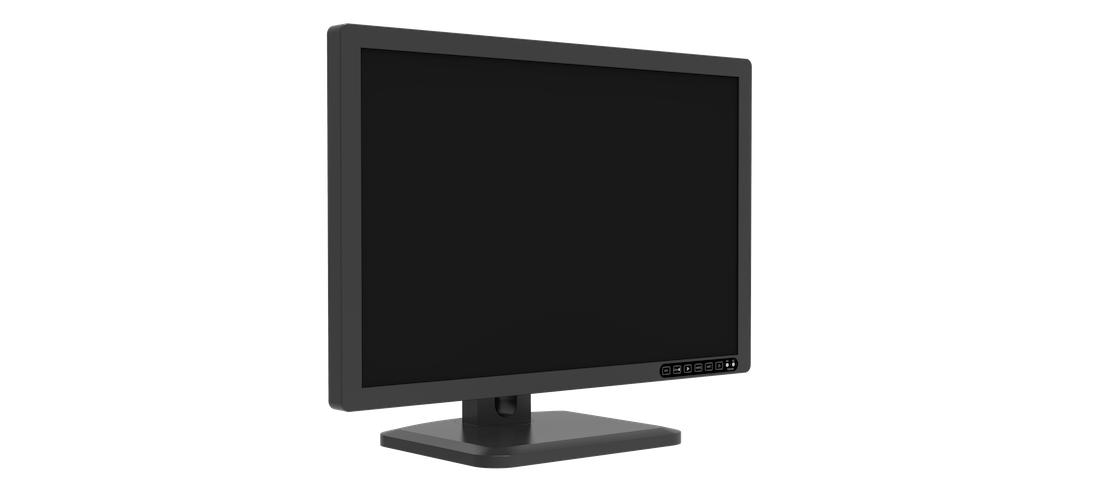

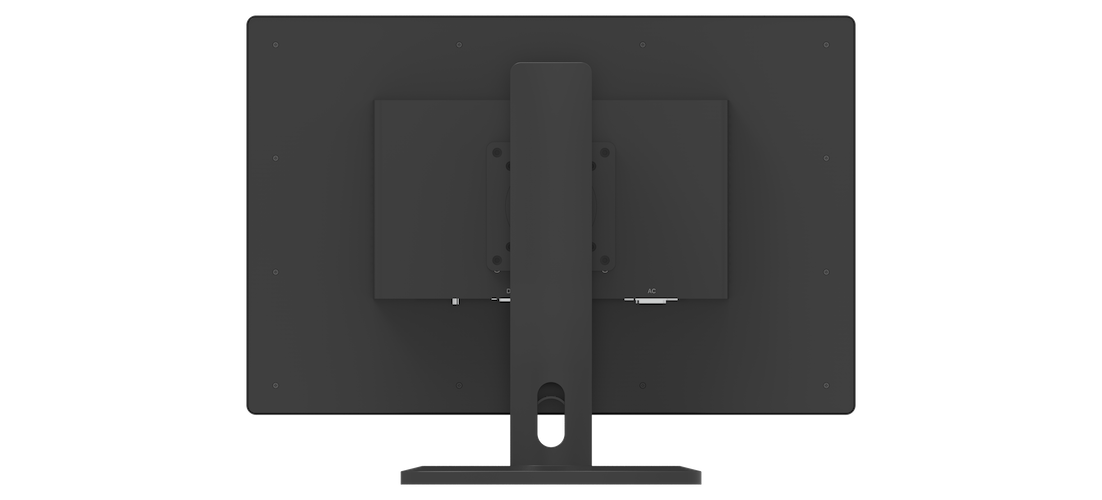

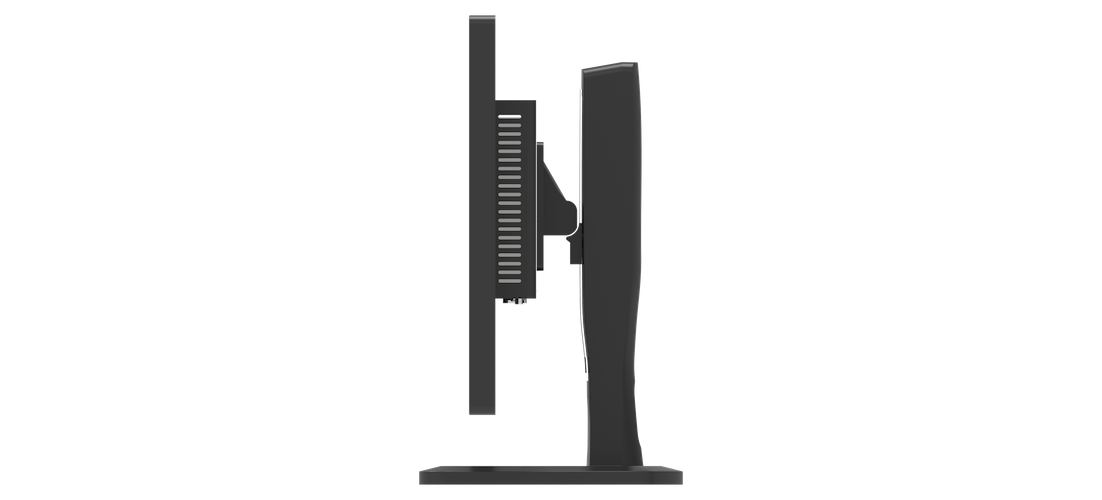

The R241M is a 24-inch professional monitor with LED backlight. A product specially designed to meet the precise performance standards of observation, diagnosis, interventional nuclear medicine, and other medical applications, with built-in DICOM/GAMMA standard LUT. It is suitable for DR, digital gastrointestinal machine, DSA and other equipment for observation or diagnosis.
Introduction

1. High resolution

With a resolution of up to 2 million pixels, it can fully display the details of medical images and meet the needs of medical institutions for accurate diagnosis.



2. Wide viewing angle

Viewed from the edge of the display, the grayscale shift is extremely small due to the wide viewing angle.



3. Compliant with DICOM/GAMMA standard

To ensure that the display always presents the most accurate image effect, JUSHA will carefully measure and set each gray scale during the production process of the display, so as to ensure that the produced R241M display complies with the DICOM/GAMMA standard.

Specification
Model No: R241M
Model R241M
Type a-Si TFT
Backlight LED
Diagonal size 24"
Display area 518.4(H) × 324(V)mm
Resolution 1920*1200
Aspect ratio 16:10
Pixel Pitch 0.27 x 0.27mm
Color Depth 24bit
LUT Depth 30bit
Viewing angles 178°
Maximum brightness (typical) 600 cd/m²
Maximum calibrated brightness 450 cd/m²
Default brightness 300 cd/m²
Minimum brightness 200 cd/m²
Presets DICOM ,GAMMA2.2 ,CT/MRI,USER
Contrast ratio 1000:1
Response time(Ton+Toff)/2 14 ms
Features "DVI-D x 1 VGA x 1"
Power input AC: 100 - 240 V: 50 / 60 Hz
Typical power 25 W
Maximum power 25 W
Power saving < 0.5 W
Housing color Black
(W x H x D)Dimensions with stand(W x H x D) 564.4mm*443mm*198mm
(W x H x D)Dimensions without stand(W x H x D) 564.4mm*370mm*62.2mm
Net weight with stand 9.3kg
Net weight without stand 6.5 kg
Certications CE, CCC, Energy saving
