Homepage  >  Product  >  Radiology Monitor  >  Portable
CP620

Introduction

Specification

Documents

Graphic card

Software

Related Product

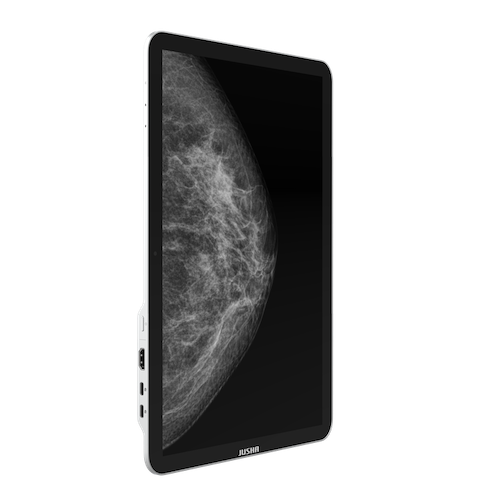

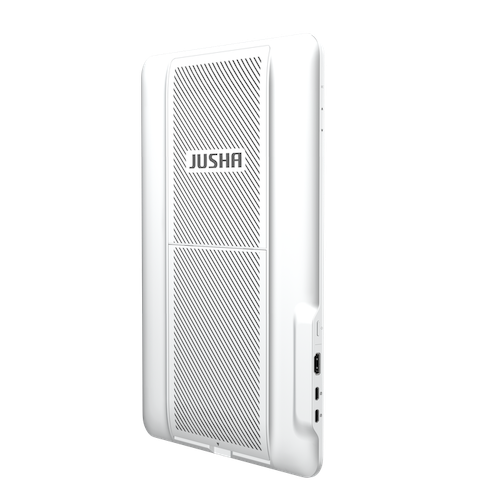

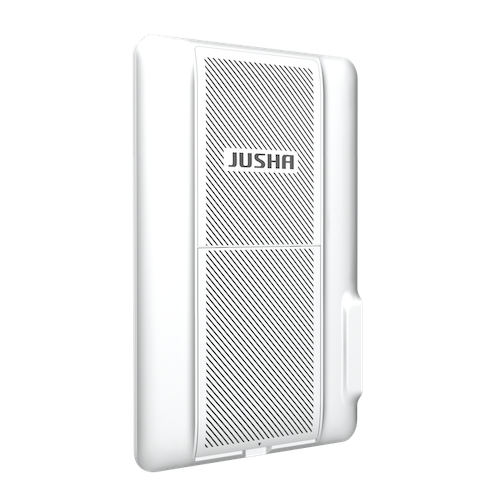

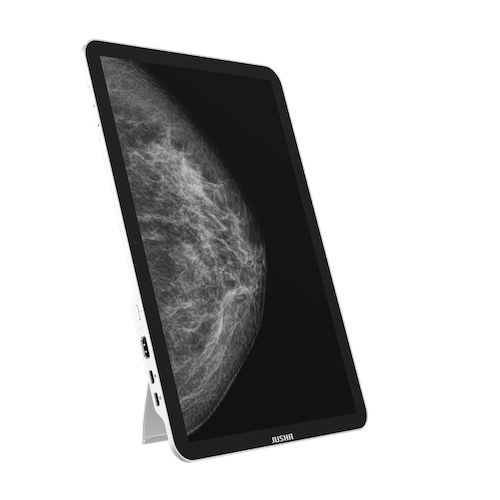

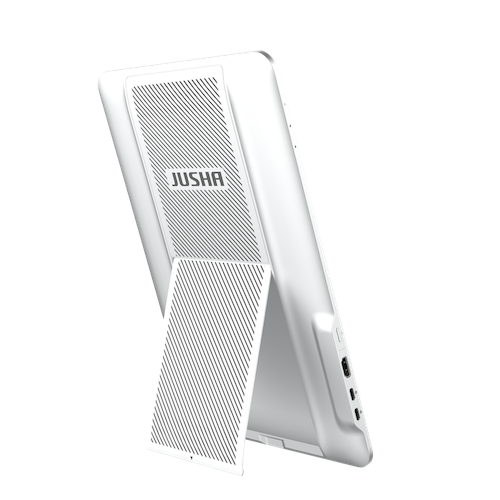

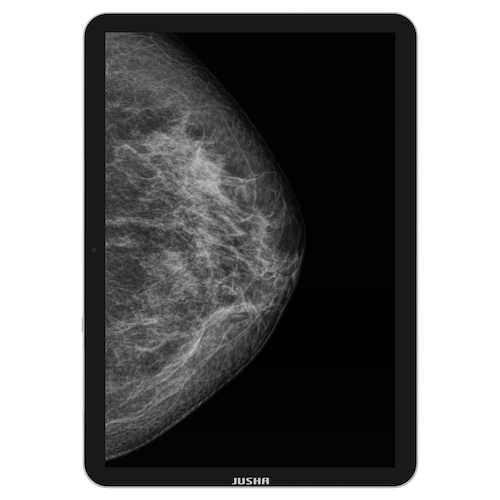

CP620

6MP/Color/Diagnostic

6MP portable medical grade tablet monitor,enables radiologist making key diagnosis decision during travel or emergency.Advanced USB-C ports giving users more convenience than ever. Touch screen makes interaction faster and more intuitive.Auto rotation,dual screen mode and ambient light sensing provides great usability in different scenarios.
Introduction

1. Dual Thunderbolt 4 ports

With Thunderbolt™ cable, power delivery and video transmission are combined together. This portable monitor can be directly powered by laptop.


2. Reverse Charging

By connecting CP620 to power adapter, CP620 can charge the laptop or mobile device reversely.


3. Capacitive Touch Screen

The touch screen enables users directly interact with PACS and many more software with fingers. Easier and more intuitive.


4. Auto Rotation

With build-in gravity sensor, windows will rotate automatically with the device orientation.


5. Ambient Light Sensing

CP620 will monitor the ambient light in real time, and change brightness and DICOM compensation accordingly, making it more comfortable to do diagnosis in different lighting environment.


6. Dual Screen Mode

With two inputs connected, users can have a seamless experience like a traditional 6MP medical monitor, two independent 3MP window side by side.


Specification
Model No: CP620
Model CP620
Type IPS
Backlight LED
Diagonal size 13.5'' (342.9 mm)
Display area 285.3 × 190.2 mm
Resolution 3000 × 2000
Aspect ratio Aspect ratio
Pixel Pitch 0.0951 × 0.0951 mm
Color Depth 8 bit
LUT Depth 14 bit
Viewing angles 160°
Maximum brightness (typical) 480 cd/m²
Maximum calibrated brightness 500 cd/m²
Default brightness 500 cd/m²
Minimum brightness 300 cd/m²
Presets DICOM、GAMMA2.2、CT/MRI-JS
Contrast ratio 1800:1
Response time(Ton+Toff)/2 17.5 ms
Qualitas QA Yes
Features Touchscreen, Dual-View, Reverse charging, ALC, Backlight stablizer, Auto-rotation
Video input "USB Type C × 2 (3000*2000@60Hz) HDMI × 1 (3000*2000@50Hz)"
USB Ports Upstream USB Type C × 2
Power input "DC: 5V,3A;9V,2A;20V,2A 或 AC: 100-240V~50/60Hz,1.3A"
Typical power 18W
Maximum power 40W
Power saving < 0.5 W
Backlight stabilizer Yes
Ambient light sensor Yes
Other sensors Temperature
Protective glass Yes
Housing color Silver
(W x H x D)Dimensions with stand(W x H x D) 312.3 × 220.2 × 11.5 mm
(W x H x D)Dimensions without stand(W x H x D) 312.3 × 220.2 × 11.5 mm
Net weight with stand 750g
Net weight without stand 750g
Certications CCC, CE
