Homepage  >  Product  >  Radiology Monitor  >  Dental
R190

Introduction

Specifications

Documents

Graphic Card

Software

Related Product

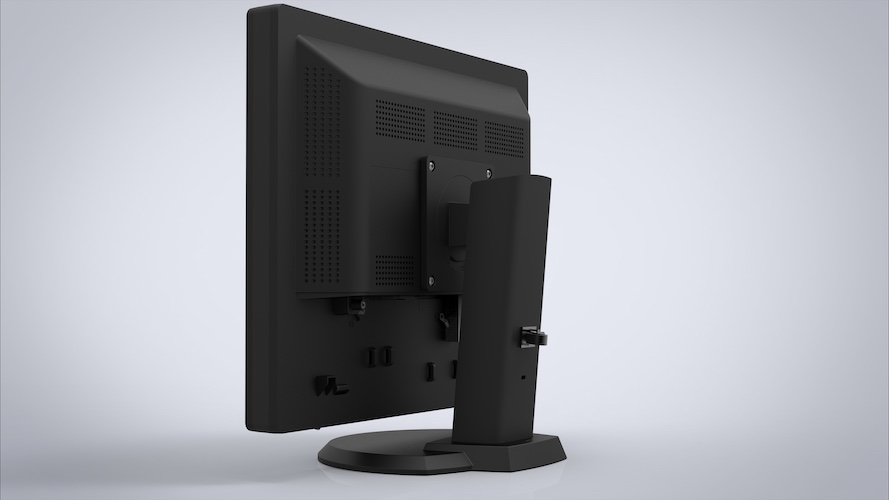

R190

1MP/Monochrome/Diagnostic

JUSHA professional display is featured with high luminance, 10bit grayscale (1024 level), built-in LUT based on DICOM standard, designed for high-requirement of clinical diagnosis, such as PACS, CT,MR and other x-ray systems.
Introduction

1.High resolution, high luminance



2.10bit (1024 tones) grayscale



3.Ins-guard System: Auto-calibration to DICOM



4.Metal Frame to facilitate heat dispersion and electromagnetic shield



5.Ideal for clinical viewing



6.Applies to PACS, MR, CT, DSA, RF and other diagnosis devices



Specifications
Model No: R190
Model R190
Type a-Si TFT
Backlight LED
Diagonal size 19"
Display area 374.784(H)x299.827(V)mm
Resolution 1280×1024
Aspect ratio 5:4
Pixel Pitch 0.2928mmx0.2928mm
Color Depth 8bit
LUT Depth 1024
Viewing angles 178°
Maximum brightness (typical) 900 cd/m²
Maximum calibrated brightness 700 cd/m²
Default brightness 600 cd/m²
Minimum brightness 150 cd/m²
Presets DICOM,、DSI
Contrast ratio 1000:1
Response time(Ton+Toff)/2 7 ms
Video input DVI-D,HDMI、DP、DVI-A(VGA)
USB Ports Upstream USB-A 2.0 x 1
Power input AC: 100 - 240 V: 50 / 60 Hz
Typical power 15 W
Maximum power 25 W
Power saving < 0.5 W
Backlight stabilizer Yes
Housing color Black
Dimensions with stand(W x H x D) 419mm*379mm*198mm
Dimensions without stand(W x H x D) 419mm*343mm*71mm
Net weight with stand 6.5kg
Net weight without stand 5kg
VESA 100 x 100 mm
Certications CE, FDA, CCC, EAC, BIS, RoHS, Energy saving
