E270AG

Introduction

Specification

Documents

Related Product

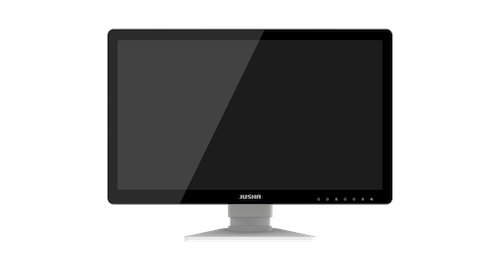

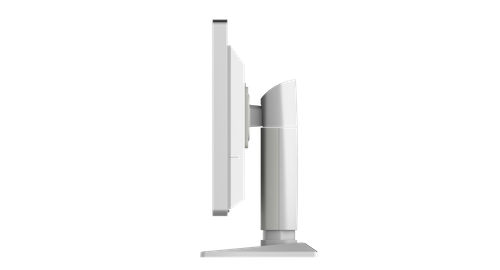

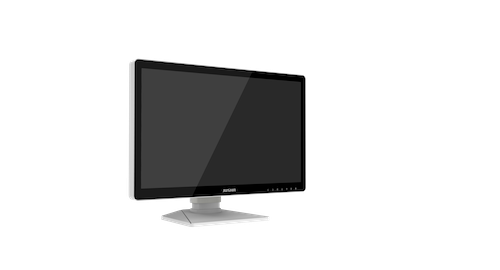

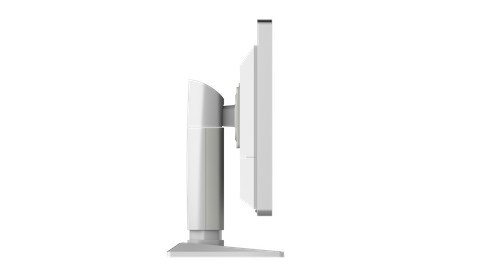

E270AG

A special monitor for endoscopic surgery adopts high-resolution FHD LCD panel, with accurate color reproduction, good color depth, smooth dynamic range, and wider viewing angle. This meets today's rapidly changing medical display needs, enabling a clear and precise visualization of the surgical images. Waterproof design, antibacterial treatment, good compliance with electromagnetic compatibility regulations, a variety of video input and output interfaces. All of these make this product fully meeting the requirements of various applications in operating rooms.
Introduction

1. Accurate color reproduction

This JUSHA surgical monitor product line applies 36 bit LUT technology, which can accurately restore the color of human body, so that surgeons can make more accurate judgments.



2. High color depth

This JUSHA surgical monitor adopts the highest-level medical liquid crystal panel, which has good color, high brightness, and high contrast, so that the layers of each tissue in the operation are well expressed and the clinical image is clear and vivid.



3. Smooth dynamic motion

 The response time of this JUSHA surgical monitor is less than 14ms, so that it can smoothly present high-resolution surgical videos, and clearly display the bleeding status and other delicate operations during the operation, without smear and jitters.



4. Meet the operating room purification and anti-interference requirements

This JUSHA surgical monitor adopts a dust-free design, which meets the purification requirements of the operating room for surgical equipment. The metal enclosed design can effectively prevent dust and liquid pollution during the operation. The body of the metal shell and the built-in shielding circuit can effectively prevent the interference of electronic surgical equipment such as high frequency electrosurgery on the monitor and ensure the stability of the surgical display.



5. Various interfaces

This JUSHA surgical monitor can be compatible with a variety of analog signals and digital signals and can be fully compatible with the world's major camera systems.


Specification
Model No: E270AG
Model E270AG
Type IPS
Backlight LED
Diagonal size 27'' (686 mm)
Display area 597.888 × 336.312 mm
Resolution 1920 × 1080
Aspect ratio 16:9
Pixel Pitch 0.3114 × 0.3114 mm
Color Depth 10 bit
LUT Depth 12 bit
Viewing angles 178°
Maximum brightness (typical) 1000 cd/m²
Maximum calibrated brightness 800 cd/m²
Default brightness 500 cd/m²
Minimum brightness 200 cd/m²
Presets GAMMA1.8, GAMMA2.0, GAMMA2.2, GAMMA2.4, GAMMA2.6,DICOM
Contrast ratio 1000:1
Response time(Ton+Toff)/2 14 ms
Features PIP
Video input DVI × 1, VGA × 1, CVBS × 1, S-VIDEO × 1, YPbPr × 1, RGBS × 1, SDI × 1
Video output DVI × 1, CVBS × 1, SDI ×1
Other I/O RS232
Power input "DC: 24V, 6.25A Power AC: 100~240V, 50/60Hz"
Typical power 70W
Maximum power 84 W
Power saving < 0.5 W
Backlight stabilizer Yes
Other sensors No
Protective glass Yes
Housing color White
(W x H x D)Dimensions with stand(W x H x D) 647.4 × (481-581) × 237.5 mm
(W x H x D)Dimensions without stand(W x H x D) 647.4 × 398.2 × 65.4 mm
Net weight with stand 16Kg
Net weight without stand 10Kg
VESA 100 × 100 mm
Certications CCC, CE
