Homepage  >  Product  >  Surgical Monitor  >  Endoscopy
E240AG

Introduction

Specification

Documents

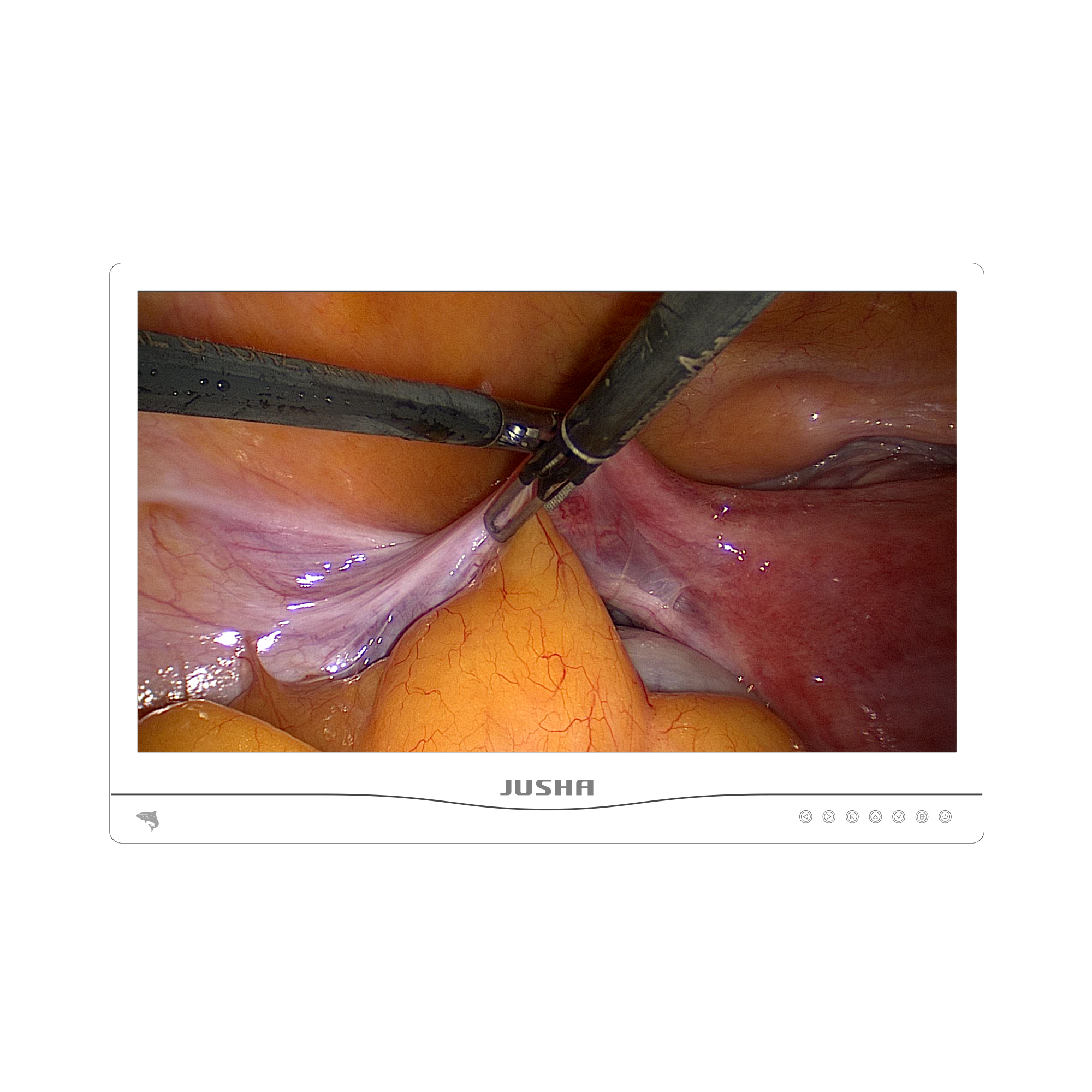

E240AG

JUSHA display for endoscopic surgery only uses full HD LCD panel with accurate color reproduction, good sense of hierarchy, smooth dynamic display, and wide visual range. It satisfies the rapid changing needs for medical display. ln minimally invasive surgery (MIS), it can clearly observe the position of surgery. The white frame, the front waterproof design, the compliance with electromagnetic compatibility and many video input and output interfaces make the product fully meet the requirements of various endoscopy or operating room and ICU display.
Introduction

1. Accurate color reproduction

All professional monitors in JUSHA surgical monitor product line applies 36-bit LUT technology, which can linearly represent more than 68.7 billion colors, to accurately restore the color of human body, so that surgeons can make more accurate judgments.



2. High color depth

This JUSHA surgical monitor adopts the highest-level medical liquid crystal panel, which has good color, high brightness and high contrast, so that the layers of each tissue in the operation are well expressed and the clinical image is clear and vivid.



3.Smooth dynamic motion

The response time of this JUSHA surgical monitor is less than 14ms, so that It can smoothly present surgical videos from standard resolution to ultra-high resolution, and clearly display the bleeding status and other delicate operations during the operation, without smear and jitters.



4. Meet the operating room purification and anti-interference requirements

This JUSHA surgical monitor adopts a dust-free design, which meets the purification requirements of the operating room for surgical equipment. The fully enclosed design can effectively prevent dust and liquid pollution during the operation. The body of the metal shell and the built-in shielding circuit can effectively prevent the interference of electronic surgical equipment such as high frequency electrosurgery on the monitor and ensure the stability of the display.



5. Various interfaces

This JUSHA surgical monitor can be compatible with a variety of analog signals and digital signals and can be fully compatible with the world's major camera systems.


Specification
Model No: E240AG
Model E240AG
Type IPS
Diagonal size 23.8'' (604.7 mm)
Display area 527.04 × 296.46 mm
Resolution 1920 × 1080
Aspect ratio 16:9
Pixel Pitch 0.2745 × 0.2745 mm
Color Depth 8 bit
LUT Depth 12 bit
Viewing angles 178°
Maximum brightness (typical) 400 cd/m²
Maximum calibrated brightness 320 cd/m²
Default brightness 260 cd/m²
Minimum brightness 200 cd/m²
Presets GAMMA1.8, GAMMA2.0, GAMMA2.2, GAMMA2.4, GAMMA2.6,DICOM
Contrast ratio 1000:1
Response time(Ton+Toff)/2 14 ms
Features PIP
Video input DVI × 1, VGA × 1, CVBS × 1, S-VIDEO × 1, YPbPr × 1, RGBS × 1, SDI × 1
Video output DVI × 1, CVBS × 1, S-VIDEO × 1, YPbPr × 1, RGBS × 1, SDI ×1
Other I/O USB-A (DC 5V 0.5A Output) × 1
Power input DC: 24V, 3.75A Power AC: 100~240V, 50/60Hz
Typical power 30 W
Maximum power 90 W
Power saving < 0.5 W
Backlight stabilizer Yes
Protective glass Yes
Housing color White
(W x H x D)Dimensions with stand(W x H x D) 565.3 × 460.3 × 245 mm

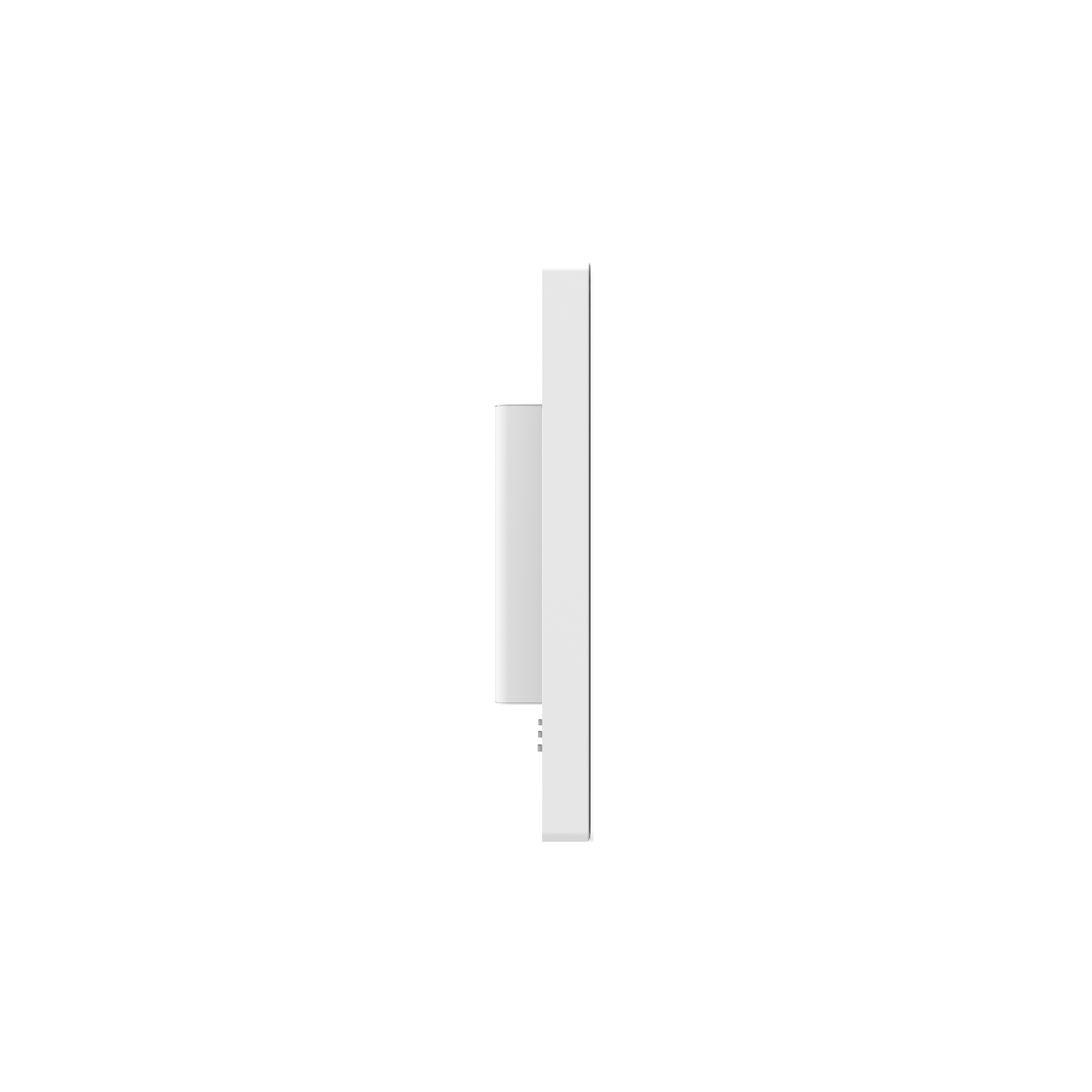

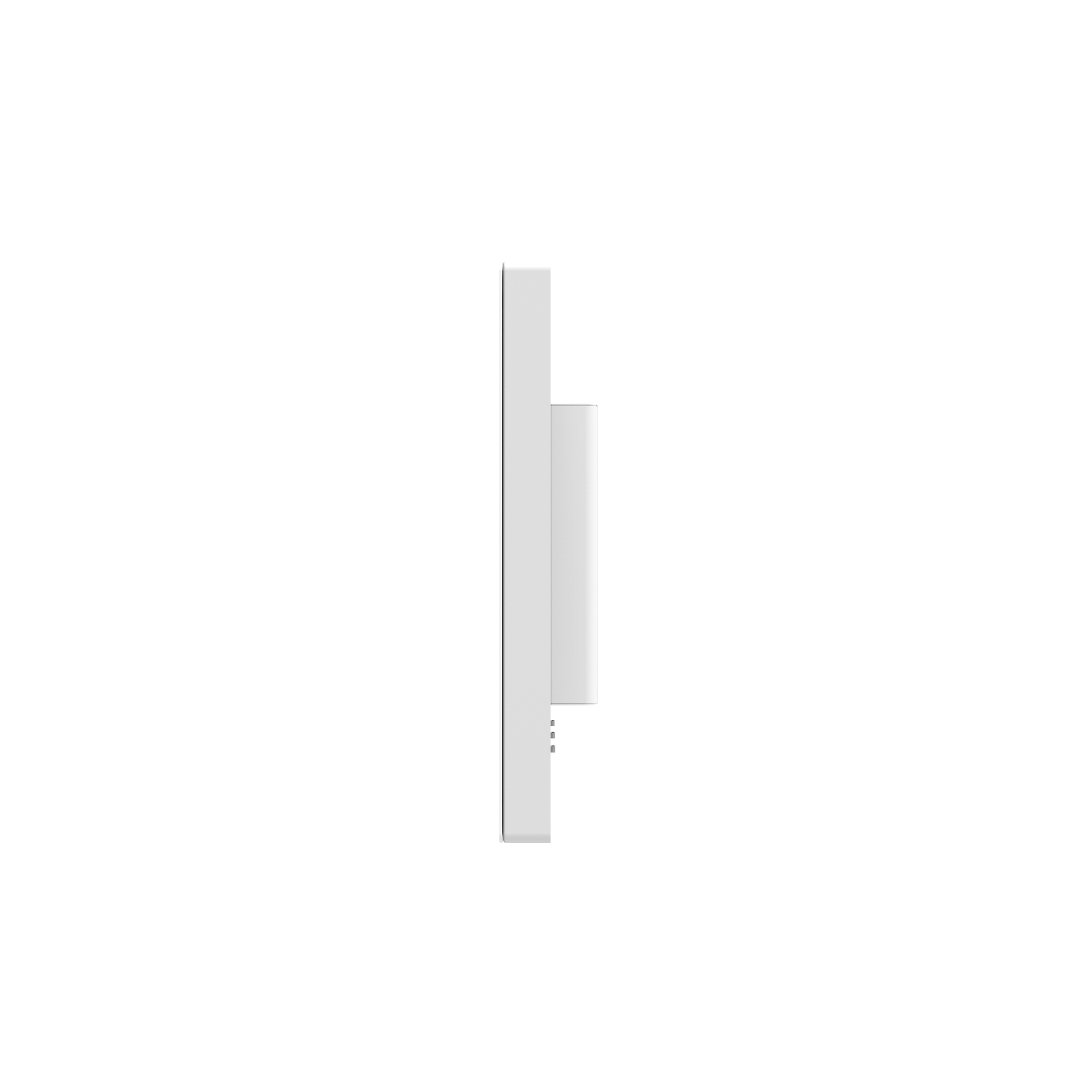

(W x H x D)Dimensions without stand(W x H x D) 565.3 × 375.3 × 65 mm
Net weight with stand 11 Kg
Net weight without stand 8.5 Kg
Certications CCC, CE

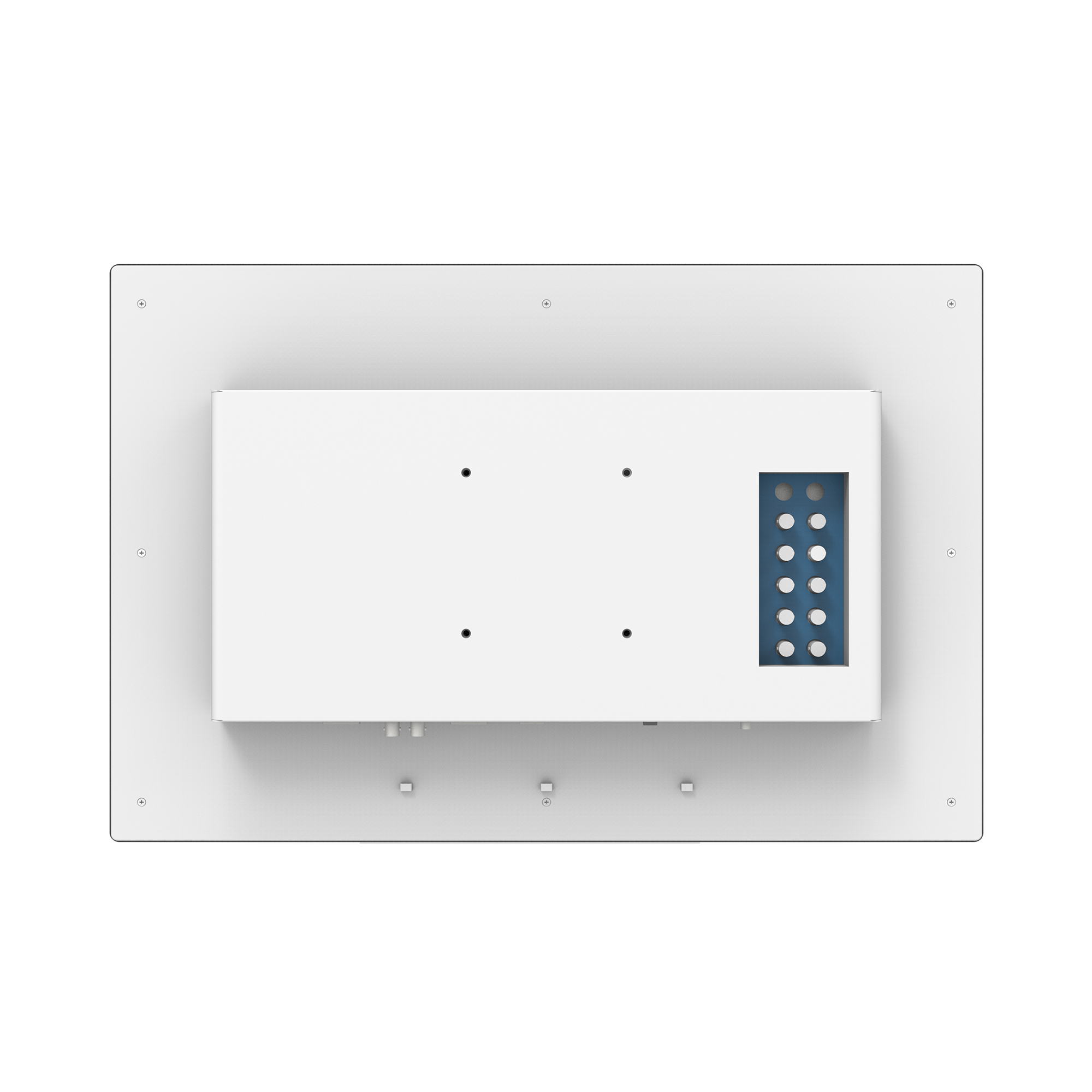

VESA 100 × 100 mm
