Homepage  >  Product  >  Surgical Monitor  >  Endoscopy
E240CG

Introduction

Specification

Documents

Related Product

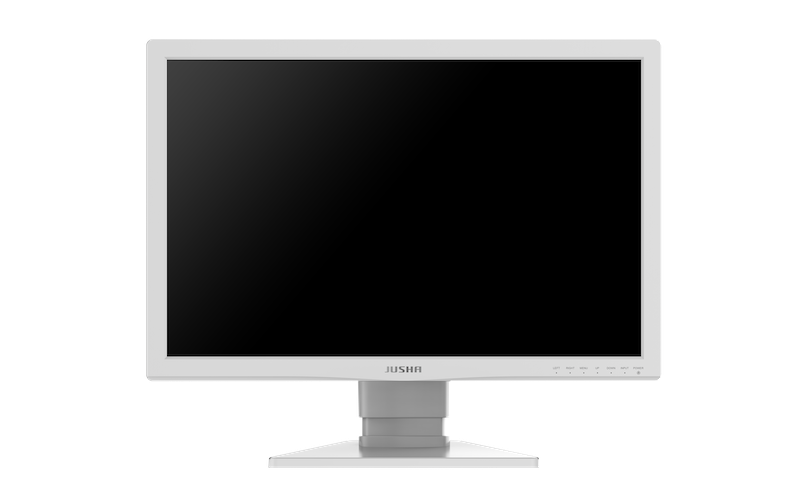

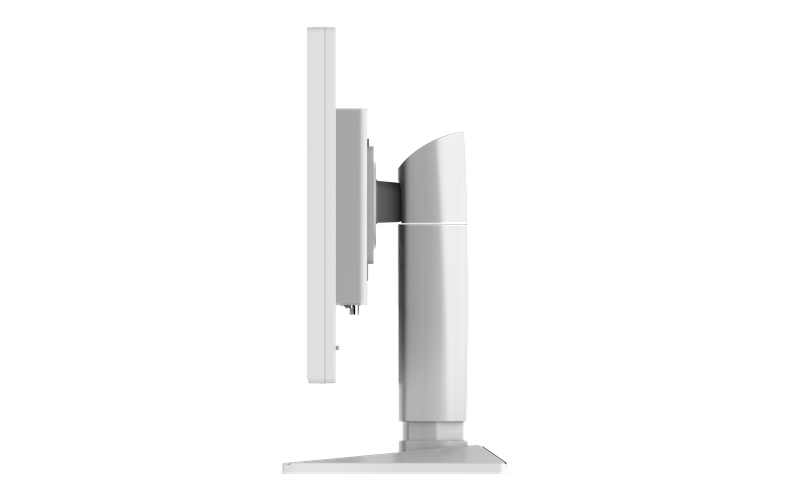

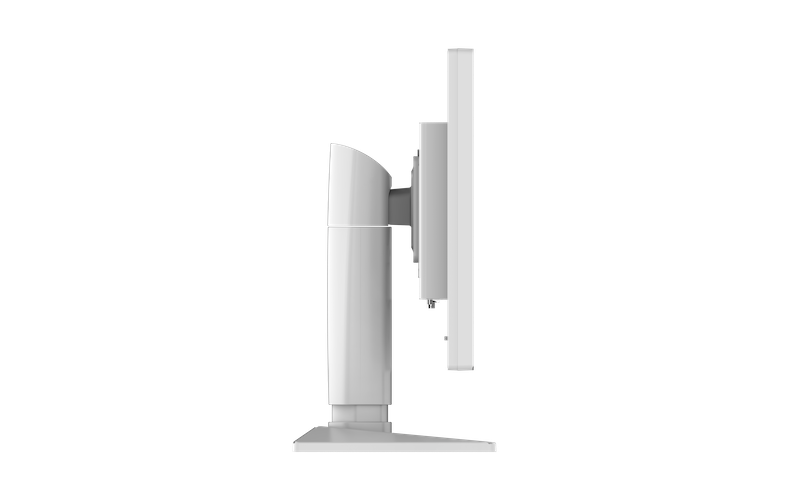

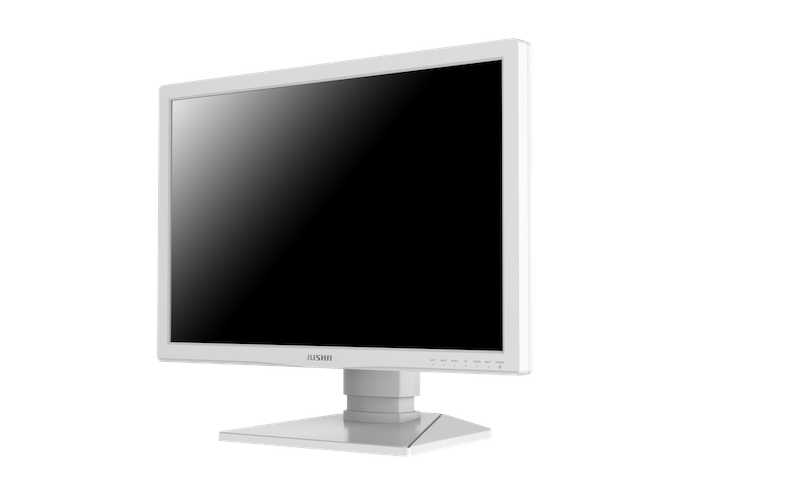

E240CG

JUSHA endoscopic operating room professional displays adopt widescreen full HD LCD panels with accurate color rendering, excellent layering smooth and dynamic images and an expanded visual scope, which meet the current rapidly changing demands for medical displays and is able to provide clear and precise observation of surgical sites in minimally invasive surgery (MIS).This product is perfectly suited to meet the requirements of various kinds of endoscopic displays or operating room and ICU displays due to its white frame, water-proof design, antibacterial-Al treatment, compliance with electromagnetic compatibility regulations and multiple video input/output interfaces.
Introduction

1. Accurate color reproduction

All professional monitors in JUSHA surgical monitor product line applies 36bit LUT technology, which can linearly represent more than 68.7 billion colors, to accurately restore the color of human body, so that surgeons can make more accurate judgments.



2. High color depth

This JUSHA surgical monitor adopts the highest-level medical liquid crystal panel, which has good color, high brightness and high contrast, so that the layers of each tissue in the operation are well expressed and the clinical image is clear and vivid.



3.Smooth dynamic motion

The response time of this JUSHA surgical monitor is less than 14ms, so that I can smoothly present surgical videos from standard resolution to ultra-high resolution, and clearly display the bleeding status and other delicate operations during the operation, without smear and jitters.



4. Meet the operating room purification and anti-interference requirements

This JUSHA surgical monitor adopts a dust-free design, which meets the purification requirements of the operating room for surgical equipment. The fully enclosed design can effectively prevent dust and liquid pollution during the operation. The body of the metal shell and the built-in shielding circuit can effectively prevent the interference of electronic surgical equipment such as high frequency electrosurgery on the monitor and ensure the stability of the display.

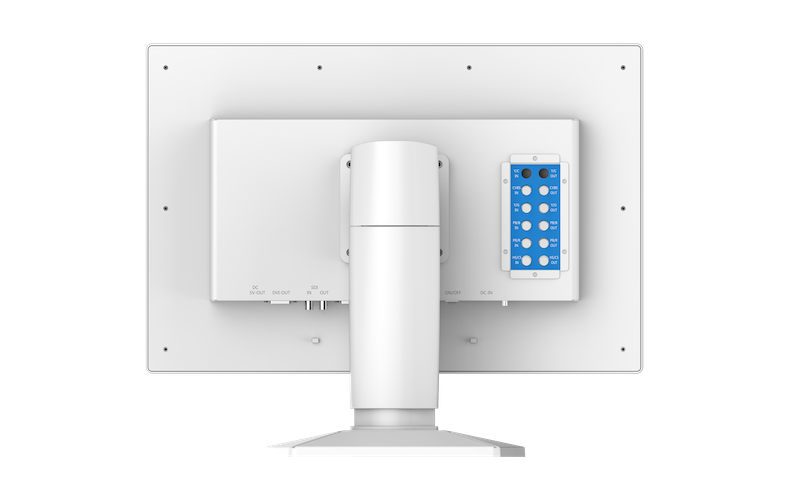

5. Various interfaces

This JUSHA surgical monitor can be compatible with a variety of analog signals and digital signals and can be fully compatible with the world's major camera systems.


Specification
Model No: E240CG
Model E240CG
Type IPS
Backlight LED
Diagonal size 24'' (611.3 mm)
Display area 518.4 × 324 mm
Resolution 1920 × 1200
Aspect ratio 16:10
Pixel Pitch 0.27 × 0.27 mm
Color Depth 8 bit
LUT Depth 12 bit
Viewing angles 178°
Maximum brightness (typical) 600 cd/m²
Maximum calibrated brightness 450 cd/m²
Default brightness 300 cd/m²
Minimum brightness 150 cd/m²
Presets GAMMA1.8, GAMMA2.0, GAMMA2.2, GAMMA2.4, GAMMA2.6,DICOM
Contrast ratio 1000:1
Response time(Ton+Toff)/2 14 ms
Features PIP
Video input DVI × 1, VGA × 1, CVBS × 1, S-VIDEO × 1, YPbPr × 1, RGBS × 1, SDI × 1
Video output DVI × 1, CVBS × 1, S-VIDEO × 1, YPbPr × 1, RGBS × 1, SDI ×1
Other I/O USB-A (DC 5V 0.5A Output) × 1
Power input "DC: 24V, 3.75A Power AC: 100~240V, 50/60Hz"
Typical power 30 W
Maximum power 90 W
Power saving < 0.5 W
Backlight stabilizer Yes
Housing color White
(W x H x D)Dimensions with stand(W x H x D) 565.3 × 469 × 211 mm
(W x H x D)Dimensions without stand(W x H x D) 565.3 × 375.3 × 63.3 mm
Net weight with stand 10.85 Kg
Net weight without stand 6.55 Kg
VESA 100 × 100 mm
Certications CCC, CE
