Homepage  >  Product  >  Surgical Monitor  >  Endoscopy
E190CG

Introduction

Specification

Documents

Related Product

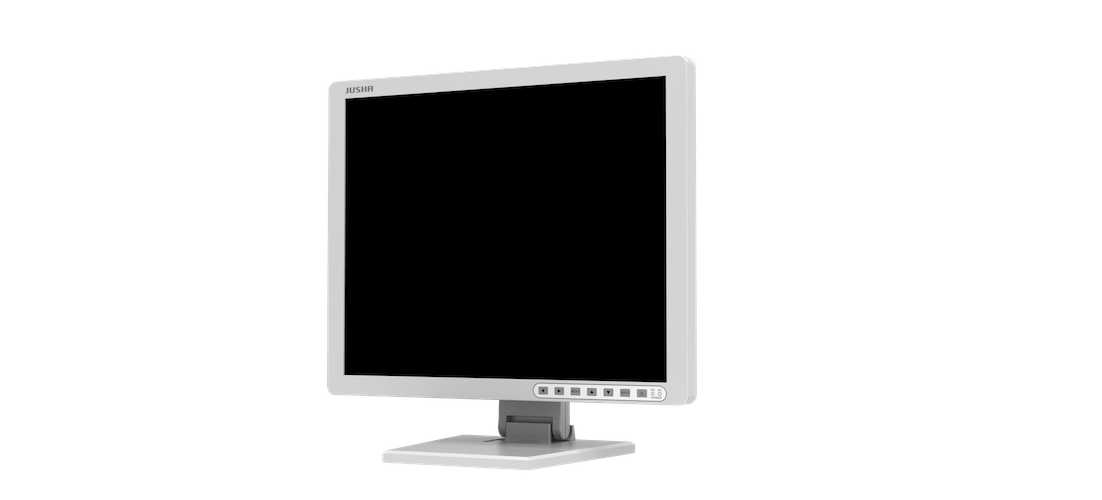

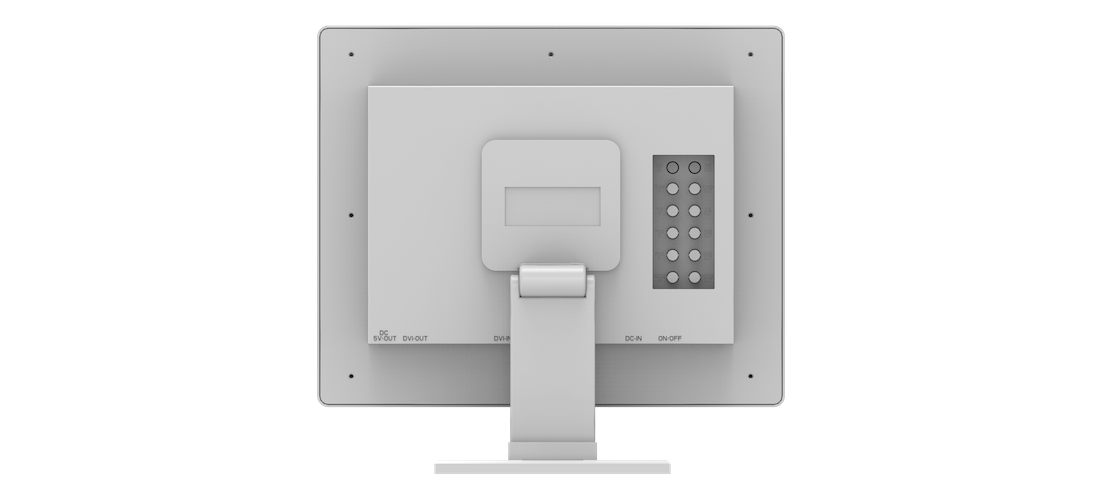

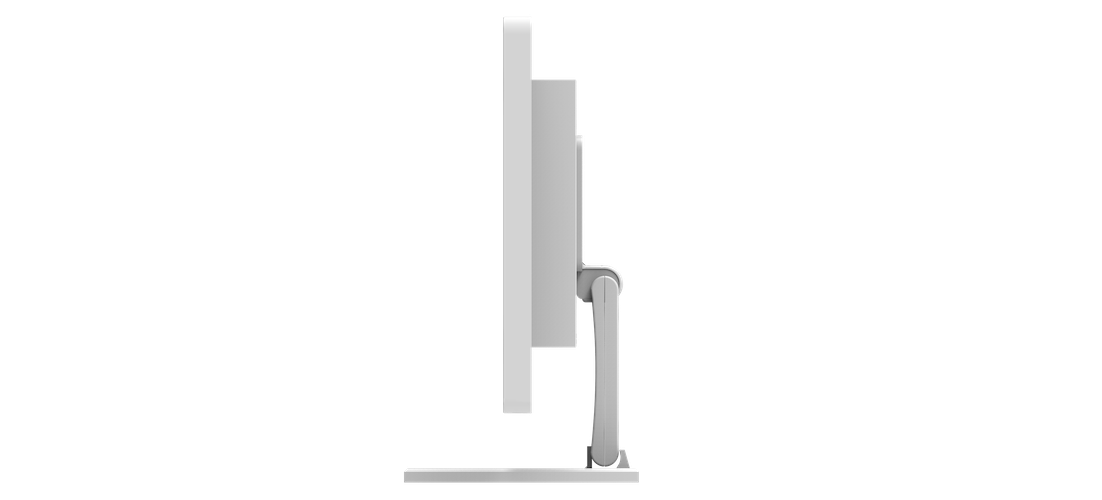

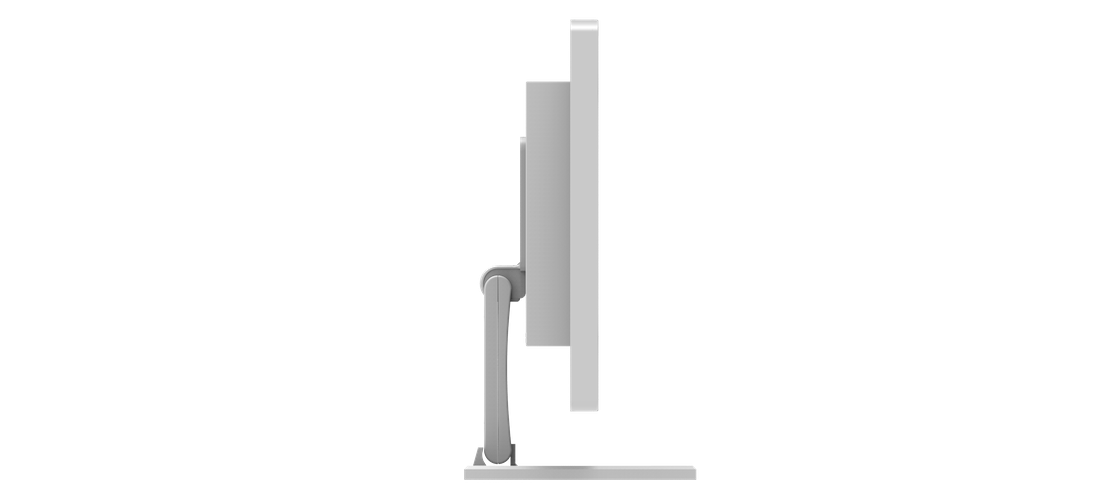

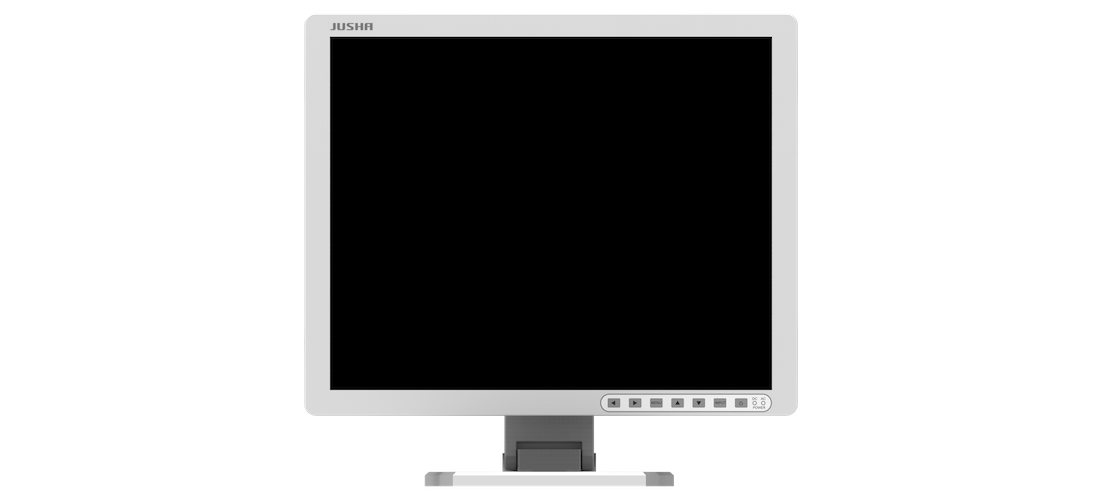

E190CG

Jusha display for endoscopic surgery only uses LCD panel with accurate color reproduction,good sense of hierarchy,smooth dynamic display and wide visual range.It satisfy the rapid changing needs for medical display.In minimally invasive surgery (MIS),it can clearly observe the position of surgery.The white frame,the compliance with electromagnetic compatibility and many video input and output interfaces make the product fully meet the requirements of various endoscopy or operating room and ICU display.
Introduction

1.Characteristics

With the 36 bit technology, JUSHA display for endoscopic surgery only can represent over 68.7 billion colors and accurately reproduce the colors of human issues in MIS, so that the surgeons can make more accurate judgments.


2.Good sense of hierarchy

The most advanced medical LCD panel used by JUSHA display for endoscopic surgery only has good sense of hierarchy, high brightness and high contrast, thus it can represent the hierarchy of any issue in the surgery and provide clear clinical surgery images.


3.Smooth dynamic image

The response time of the gray scale of JUSHA display for endoscopic surgery only is less than 14ms, thus it can smoothly present the surgery images from standard definition to high definition and clearly display bleeding and other meticulous operations in the surgery without smearing and shaking.


4.Compliance with the requirements of cleansing and anti-interference in the operating room

The white dust-free design used by JUSHA display for endoscopic surgery only meets the cleansing requirements of operating equipment in the operating room. The closed metal design can effectively prevent dust and liquid pollution during the surgery. The body with metal shell and the built-in shield circuit can effectively prevent the interference of electric operating equipment such as high frequency electric knife to the monitor, thus it can ensure the stability of surgical display.


5.Various types of interfaces

JUSHA display for endoscopic surgery only can be compatible with various analog signals and digital signals as well as the image pick-up systems of hard lens manufactures and soft lens manufactures in the world. lt fully meets the needs of various brands and equipment.


Specification
Model No: E190CG
Model E190CG
Type IPS
Backlight LED
Diagonal size 19''(479.96mm)
Display area 374.784 × 299.827 mm
Resolution 1280 × 1024
Aspect ratio 5:4
Pixel Pitch 0.2928 × 0.2928 mm
Color Depth 8 bit
LUT Depth 12 bit
Viewing angles 178°
Maximum brightness (typical) 250 cd/m²
Maximum calibrated brightness 200 cd/m²
Default brightness 150 cd/m²
Minimum brightness 100 cd/m²
Presets GAMMA1.8, GAMMA2.0, GAMMA2.2, GAMMA2.4, GAMMA2.6,DICOM
Contrast ratio 1000:1
Response time(Ton+Toff)/2 14 ms
Features PIP
Video input DVI × 1, VGA × 1, CVBS × 1, S-VIDEO × 1, YPbPr × 1, RGBS × 1
Video output DVI × 1, CVBS × 1, S-VIDEO × 1, YPbPr × 1, RGBS × 1
Other I/O USB-A (DC 5V 0.5A Output) × 1
Power input DC: 12V, 5A Power AC: 100~240V, 50/60Hz
Typical power 25W
Maximum power 60 W
Power saving < 0.5 W
Housing color White
(W x H x D)Dimensions with stand(W x H x D) 421.8 × 404.2 × 204 mm
(W x H x D)Dimensions without stand(W x H x D) 421.8 × 344 × 63.7 mm
Net weight with stand 6.9Kg
Net weight without stand 5.5Kg
VESA 100 × 100 mm
Certications CCC
